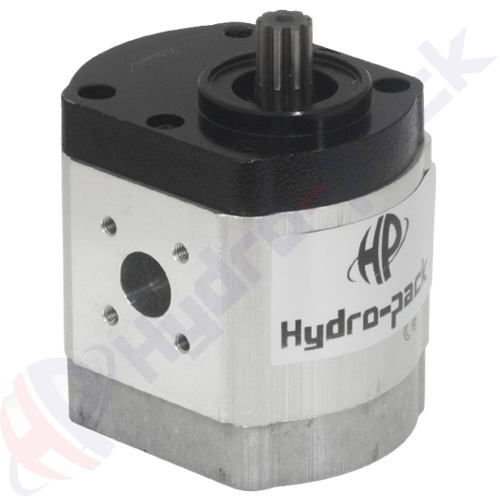

Group 20 Hydraulic Gear Pump, 4.5 cc/rev, anti-clockwise , front 4 bolt flange 50 mm , 9 teeth splined DIN5482 shaft , 20A4.5X096
Group 20 Hydraulic Gear Pump
Group 20 Hydraulic Gear Pump, 4.5 cc/rev, anti-clockwise , front 4 bolt flange 50 mm , 9 teeth splined DIN5482 shaft , 20A4.5X096
Group 20 Hydraulic Gear PumpSKU: 20A4.5X096
Hydraulic pumps are mechanical devices that convert mechanical energy into hydraulic energy. They generate flow with enough power to overcome pressure induced by the load. X096 series pumps are front section of double tandem pumps. They can be assembled with X097 series.
Price:
€65.00
Fast order
Fill in the form with your name and phone and we will call you for confirmation.
More information about the product
20A4.5X096 Hydraulic Gear Pump
20A4,5X096
Hydraulic pumps are mechanical devices that convert mechanical energy into hydraulic energy. They generate flow with enough power to overcome pressure induced by the load. Hydropack offer group 20 external gear pumps with different specifications. X096 series pumps are front section of double tandem pumps. They can be assembled with X097 series.
* Rotation is anti-clockwise from shaft view
* Max. pressure refers to P1 pressure (Max. continuous pressure)
| Displacement | 4.5 |
| Rotation | anti-clockwise |
| Flange Type | front 4 bolt flange 50 mm |
| Shaft Type | 9 teeth splined DIN5482 shaft |
| Ports | flanged connection |
| Max. Pressure | 250 |
| Max. Speed | 3500 |
| Serie | 20A4.5X096 |
