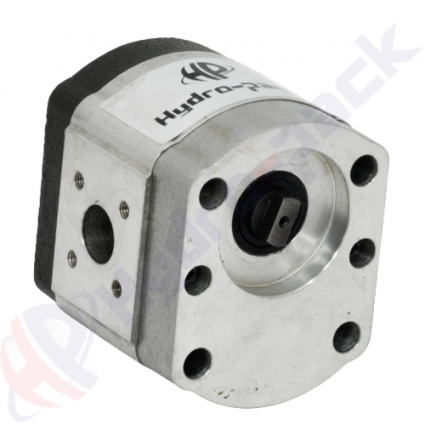

Group 20 Hydraulic Gear Pump, 22 cc/rev, clockwise , front 2 bolt threaded flange 50 mm , 1:5 tapered shaft , 20C22X095
Group 20 Hydraulic Gear Pump
Group 20 Hydraulic Gear Pump, 22 cc/rev, clockwise , front 2 bolt threaded flange 50 mm , 1:5 tapered shaft , 20C22X095
Group 20 Hydraulic Gear PumpSKU: H20C22X095
Hydraulic pumps are mechanical devices that convert mechanical energy into hydraulic energy. They generate flow with enough power to overcome pressure induced by the load. X095 series pumps are front section of double tandem pumps. They can be assembled with X097 series.Hydropack offer 20C22X095 gear pump.
Price:
€65.00
Fast order
Fill in the form with your name and phone and we will call you for confirmation.
More information about the product
20C22X095 Hydraulic Gear Pump
20C22X095
Hydraulic pumps are mechanical devices that convert mechanical energy into hydraulic energy. They generate flow with enough power to overcome pressure induced by the load. Hydropack offer group 20 external gear pumps with different specifications. X095 series pumps are front section of double tandem pumps. They can be assembled with X097 series.
* Rotation is clockwise from shaft view
* Max. pressure refers to P1 pressure (Max. continuous pressure)
| Displacement | 22 |
| Rotation | clockwise |
| Flange Type | front 2 bolt threaded flange 50 mm |
| Shaft Type | 1:5 tapered shaft |
| Ports | flanged connection |
| Max. Pressure | 180 |
| Max. Speed | 2000 |
| Serie | 20C22X095 |
